Application Parameters

Application Parameters allow Tenant Administrators to configure the behavior of licensed applications within the SignalSync platform. These parameters control various aspects of system functionality, including workflow processing, file management, and automation rules.

Overview

Parameters are pre-configured settings that come bundled with each licensed application. While you cannot create new parameters, you have full control over editing the values to suit your organization's specific needs.

Accessing Application Parameters

1. Navigate to Settings from the main menu
2. Select Parameters from the settings submenu

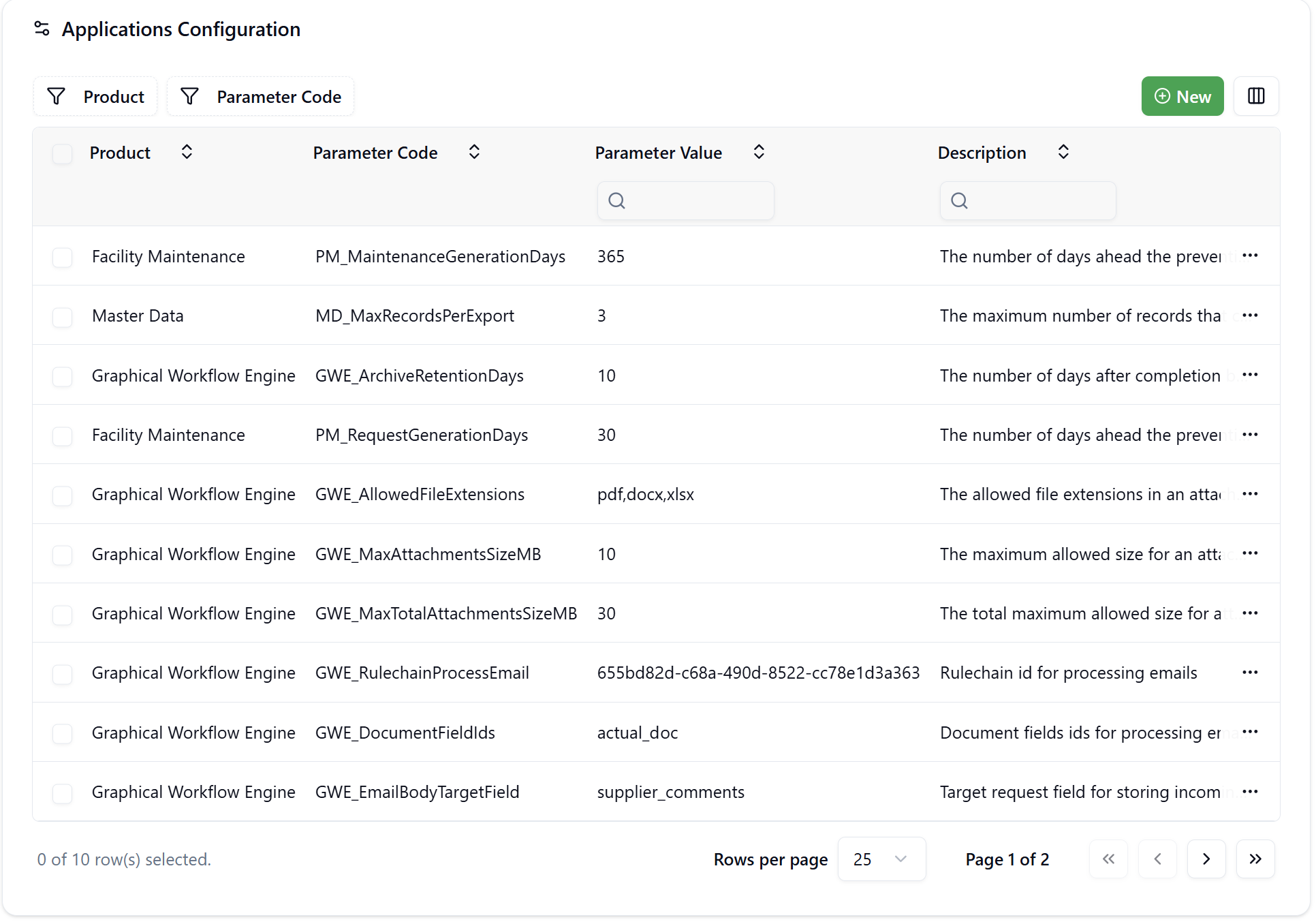

3. The Application Configuration screen displays all available parameters organized by product

Understanding Parameters

Each parameter consists of:

• Product: The application module the parameter belongs to
• Parameter Code: A unique identifier for the parameter (read-only)
• Parameter Value: The configurable value that controls behavior
• Description: Explanation of what the parameter controls and its default value

tip

Parameters are specific to your tenant and do not affect other tenants in the system.

Available Parameters by Product

Graphical Workflow Engine (GWE)

The Graphical Workflow Engine parameters control workflow execution, archiving, and file handling capabilities.

Archive and Retention

Parameter Code	Default Value	Description
GWE_ArchiveRetentionDays	90	The number of days after completion before archiving workflow requests. Completed requests will be moved to archive storage after this period.

Email Processing

Parameter Code	Default Value	Description
GWE_RulechainProcessEmail	(empty)	Rulechain ID for processing incoming emails. Must reference a valid rulechain configured in your system.
GWE_DocumentFieldIds	actual_doc, supplier_doc_1, supplier_doc_2	Document field IDs where email attachments will be stored. Comma-delimited list of field identifiers.
GWE_EmailBodyTargetField	supplier_comments	Target request field for storing incoming email body content.
GWE_MaxAttachmentsSizeMB	10	The maximum allowed size for a single attachment in megabytes.
GWE_MaxTotalAttachmentsSizeMB	30	The total maximum allowed size for all attachments combined in a single request.
GWE_AllowedFileExtensions	pdf,docx,xlsx	The allowed file extensions for attachments. Multiple extensions should be comma-delimited.

Email Processing Workflow:

1. Incoming emails are processed by the specified rulechain
2. Email attachments are distributed to the document fields listed in GWE_DocumentFieldIds
3. The email body content is stored in the field specified by GWE_EmailBodyTargetField

Rulechain Configuration

The GWE_RulechainProcessEmail parameter requires a valid rulechain ID. Configure your email processing rulechain first, then reference its ID here.

Facility Maintenance (PM)

Facility Maintenance parameters control the generation of preventive maintenance tasks and requests.

Parameter Code	Default Value	Description
PM_MaintenanceGenerationDays	365	The number of days ahead the preventive maintenance tasks will be generated for. The system will automatically create PM tasks for this future period.
PM_RequestGenerationDays	30	The number of days ahead the preventive maintenance requests will be generated for. This controls when actual work requests are created from scheduled tasks.

Planning Cycle:

• Tasks (PM_MaintenanceGenerationDays): Long-term planning horizon (typically 365 days)
• Requests (PM_RequestGenerationDays): Short-term execution window (typically 30 days)

Best Practice

Keep PM_MaintenanceGenerationDays significantly higher than PM_RequestGenerationDays to maintain a full annual view of scheduled maintenance while only generating actionable requests for the immediate future.

Master Data (MD)

Master Data parameters control data export capabilities and document management.

Data Export

Parameter Code	Default Value	Description
MD_MaxRecordsPerExport	10000	The maximum number of records that can be exported from the database in one operation.

Performance Consideration: This limit prevents system overload during large export operations. Users exporting larger datasets will need to apply filters or export in batches.

Document Management

Parameter Code	Default Value	Description
MD_MaxFileSizeMB	10	Maximum file size for documents in megabytes.
MD_FileExtensions	jpg,png,pdf,gif,docx,xlsx	Allowed file extensions for documents (comma delimited).

Supported File Types:

• Images: jpg, png, gif
• Documents: pdf, docx, xlsx
• Additional: Configure based on your document management needs

Editing Parameter Values

To modify a parameter value:

1. Locate the parameter you want to change in the parameters table
2. Click the ⋯ (three dots) menu icon on the right side of the parameter row
3. Select Edit from the context menu
4. Enter the new value in the Parameter Value field
5. Click Save to apply the changes

Important

• Parameter changes take effect immediately and apply to all future operations
• Some parameters may require application restart or cache clearing to fully apply
• Always test parameter changes in a non-production environment first
• Document any customizations for future reference

Common Configuration Scenarios

Increasing File Upload Limits

If users need to upload larger files:

1. Increase GWE_MaxAttachmentsSizeMB for single file limit
2. Increase GWE_MaxTotalAttachmentsSizeMB for total request limit
3. Add additional file types to GWE_AllowedFileExtensions if needed
4. Verify storage capacity can accommodate larger files

Configuring Email Integration

To enable email processing for supplier responses:

1. Create and test your email processing rulechain
2. Copy the rulechain ID
3. Set GWE_RulechainProcessEmail to the rulechain ID
4. Verify GWE_DocumentFieldIds lists the correct document fields
5. Confirm GWE_EmailBodyTargetField points to the appropriate field

Optimizing Preventive Maintenance Scheduling

For seasonal or project-based maintenance cycles:

1. Set PM_MaintenanceGenerationDays to cover your full planning cycle
2. Adjust PM_RequestGenerationDays based on your maintenance team's capacity
3. Monitor system performance and adjust retention periods accordingly

Best Practices

1. Document Customizations: Keep a record of all parameter changes and the business reasons behind them
2. Test Before Production: Validate parameter changes in a test environment when possible
3. Review Periodically: Regularly review parameters to ensure they still meet business needs
4. Monitor Impact: Track system performance and user feedback after parameter changes
5. Coordinate Changes: Communicate parameter modifications to affected users and teams

Troubleshooting

Users Cannot Upload Files

Possible Causes:

• File extension is not in the allowed list
• File exceeds maximum size limit
• File contains special characters or invalid filename
• Browser or network issues during upload

Resolution:

• Verify MD_FileExtensions includes the required file type
• Check individual files are under MD_MaxFileSizeMB limit (default: 10 MB)
• Remove special characters from filename and retry
• Test with a small file (under 1 MB) to rule out size issues
• Clear browser cache and retry the upload

Email Processing Not Working

Possible Causes:

• Rulechain ID is empty or invalid
• Rulechain is not active or has errors
• Document field IDs don't match workflow form field identifiers
• Target field for email body doesn't exist in the form
• Field IDs have incorrect case or spelling
• Fields are not the correct type

Resolution:

• Verify GWE_RulechainProcessEmail contains a valid rulechain UUID
• Confirm the rulechain is active and properly configured in the Rulechain Designer
• Open the workflow in Workflow Form Designer and verify each document field ID
• Ensure GWE_DocumentFieldIds exactly matches these IDs (case-sensitive)
• Verify the email body target field exists and is a text or textarea field
• Check field IDs include any prefix characters
• Test with a simple configuration first
• Review rulechain logs for processing errors

How to Verify Field IDs:

1. Workflow Form Designer - Select document field

2. Properties Panel - Copy "ID" value exactly

3. Example: If ID shows "actual_doc", parameter must be "actual_doc"

4. Comma-delimited for multiple: actual_doc, supplier_doc_1, supplier_doc_2

Example Configuration:

GWE_RulechainProcessEmail: 655bd82d-c68a-49dd-8522-1c7be1d3a363

GWE_DocumentFieldIds: actual_doc, supplier_doc_1, supplier_doc_2

GWE_EmailBodyTargetField: supplier_comments

PM Tasks Not Generating

Possible Causes:

• PM_MaintenanceGenerationDays is set to 0 or very low value
• PM_RequestGenerationDays is set to 0 or very low value
• PM schedules are not properly configured
• No active preventive maintenance schedules exist
• Schedule dates are outside the generation window

Resolution:

• Confirm PM_MaintenanceGenerationDays is set to appropriate value (typically 365)
• Ensure PM_RequestGenerationDays is set to reasonable value (typically 30 days)
• Verify PM schedules are created and active in the Facility Maintenance module
• Review schedule start dates and frequencies
• Ensure at least one schedule has a next generation date within the specified days

Recommended Settings:

PM_MaintenanceGenerationDays: 365 (for annual planning view)

PM_RequestGenerationDays: 30 (for monthly execution window)

Validation Steps:

Navigate to Facility Maintenance and select Preventive Maintenance Schedules. Verify at least one schedule shows "Active" status. Check "Next Generation Date" is within the configured day range. Review System Logs for PM generation job execution. Manually trigger PM generation.

Export Failing with Too Many Records

Possible Causes:

• Dataset exceeds MD_MaxRecordsPerExport limit (default: 10,000 records)
• No filters applied to large dataset
• Query includes archived or historical data
• Export includes related records that multiply the count

Resolution:

• Check the record count before exporting
• Apply date range filters to reduce dataset size
• Use status filters (only "Active" records)
• Exclude archived data if not needed
• Consider increasing MD_MaxRecordsPerExport if system resources allow
• Export in batches using different filter criteria
• Use scheduled exports for large datasets

Best Practice for Large Datasets:

1. Export by date range (one quarter at a time)

2. Export by status (Active, Completed separately)

3. Export by location or department

4. Consider increasing limit: MD_MaxRecordsPerExport = 20000

Note: Higher limits may impact system performance

Parameter Changes Not Taking Effect

Possible Causes:

• Application cache not cleared after parameter change
• Browser cache showing old values
• Parameter value format is incorrect
• Validation error occurred but was not displayed

Resolution:

• Clear application cache after changing parameters
• Refresh browser (Ctrl+F5 or Cmd+Shift+R)
• Verify parameter value format matches expected type
• Check system logs for parameter validation errors
• Re-open the Parameters page to confirm changes were saved
• Test the affected functionality after sufficient time for cache refresh

Cache Clear Steps:

1. Go to Settings and select Parameters

2. Make your change and save

3. Log out and log back in

4. Test affected functionality
